IRRIGATION
Our state-of-the-art irrigation systems are meticulously sourced from Israel through our partnership a renowned provider of cutting-edge horticulture and agriculture solutions. This stands at the forefront of innovation, offering an extensive array of products tailored to meet the diverse needs of modern farming practices.
Among the remarkable products we incorporate into our irrigation systems are the high-quality drip lines, available in both brown and green variants. These drip lines epitomize efficiency and precision, ensuring optimal water distribution for your crops. The Supertif button drippers, another standout component of our irrigation systems, exemplifys our commitment to excellence in agricultural technology. These drippers are designed to deliver a consistent and controlled flow of water, promoting the health and vitality of your plants.
For more information about this product please contact us
01
PRODUCT
Irritec
Irritec core business is implementing increasingly efficient solutions for the optimization of water resources and manufacturing processes
in the irrigation sector. For over 40 years now Irritec has been designing, manufacturing and selling innovative irrigation products guaranteeing maximum water efficiency.
02
PRODUCT

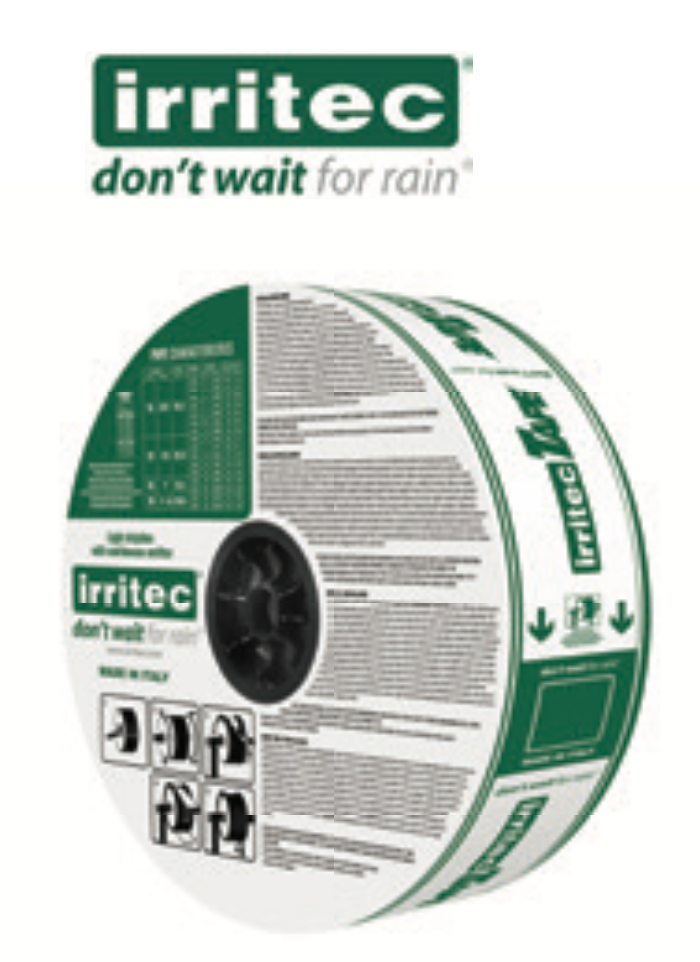

Irritec Tape
Irritec TapeTM is the light continuous labyrinth dripline ideal for low spacing between vegetable crops and flower cultivation in the oven field. The reduced distance between the drip points and the low flow rate guarantees excellent performance even on very sandy soil.
Crop Applications:
- 0.15mm wall thickness -Tomatoes,
peppers, melons and strawberries.
- 0.20mm wall thickness- Were more resistance to abrasion and insect damage is desired. All vegetable crops.
Product Options:
Diameter: 16mm
Wall thickness: 0.15mm-0.20mm Dripper spacings: 0.20-0.30 cm Flow rate per outlet:1.2lph
Flow rates at 0.70 bar: 1.20.
Operating Guidelines:
- Standard operating pressure: 0,55 bar to 0.70 bar. Maximum pressure: according to wall thickness
03
PRODUCT

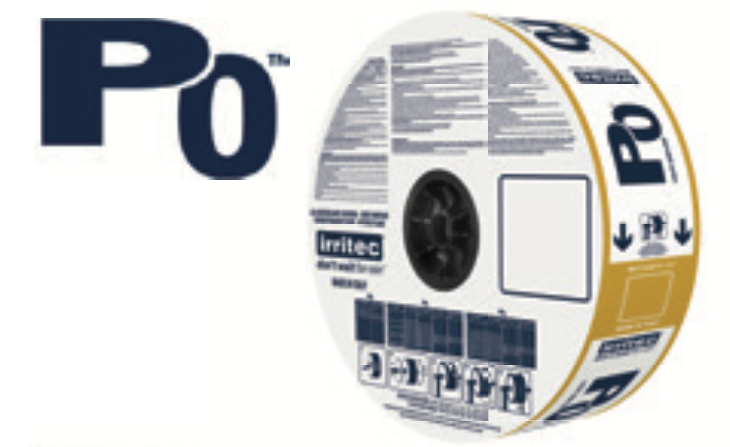

P0™️
P0™️ is Irritec® brand new light dripline including the innovative molded ultra compact flat dripper generating almost 0 head loss, ideal for short spacing and long lines. The effective and compact dripper makes P0™️ ideal for seasonal crops with reduced spacing.
Operating Guidelines:
Standard operating pressure: 0.70 bar to 1 bar. Maximum pressure: according to wall thickness
Crop Applications:
All vegetable crops. Both Open field and Greenhouses.
Product Options:
Diameter: 16mm
Wall thickness: 0.15mm-0.20mm Dripper spacings: 0.20-0.30 cm
Flow rate per outlet option:1.2lph or 2lph Flow rates at 0.10 bar.
Operating Guidelines:
Standard operating pressure: 0.70 bar to 1 bar Maximum pressure: according to wall thickness
Crop Applications:
- All vegetable crops. Both Open field and Greenhouses.
04
PRODUCT

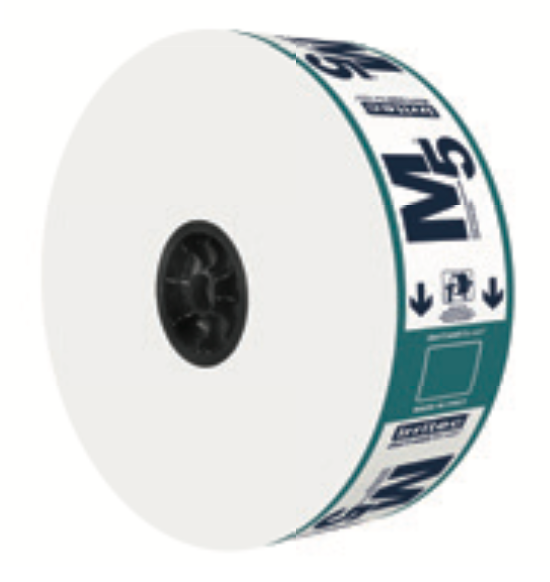

M5™️ (Non-PC drip line)
The classic dripline with flat dripper M5™️ is ideal for orchards and application of perennial crops.
The particular design of the flat dripper allows excellent uniformity. Furthermore, the particular design of the labyrinth considerably reduces pressure and increases the self- cleaning effect thanks to the higher level of turbulence developed.
Product options:
Nominal diameter: 16 mm
Wall thickness: For 16 mm - 0.60, 0.90, & 1mm Flow rates: 1.1, 1.6 & 2.1 lph
Std. Dripper spacings: 30, 60, 75, 100cm
Operating Guidelines:
Recommended operating pressure: 1 bar
Applications:
- Vegetables, orchards, vineyards and landscape
05
PRODUCT
Multibar™️ F (PC dripline)
- A cloud-based irrigation controller using computer, laptop, tablet or smartphone
- AC, DC (Battery-operated) or DC with Solar panel
- Advanced monitoring and alert system, Realtime notifi cation via email
- Simple over-the-air (OTA) updates and upgrades
- Can be connected to GAL1WAY RTU units
Product options
Diameters: 16 mm
Wall thickness: 0.60mm, 0.90mm and 1mm Flow rates: 1.1, 1.6, 2.1 lph
Std. Dripper spacings: 30, 60, 75, 100cm
Operating Guidelines:
Operating pressure range: 0.5 – 3.5 bar
Applications:
- Blueberries, orchards, vineyards and landscape.
06
PRODUCT

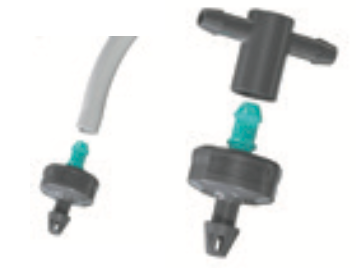

IDROP® LIGHT PC Drop stop
iDrop® in the LIGHT – PC version is the Irritec® on-line dripper with pressure compensating turbulent flow which packs all of its technology into a truly compact size. It has a double inlet filter, a tough silicone membrane and a turbulent labyrinth path that all contribute to its excellent hydraulic characteristics. Functional quality, ease of installation in countless possible combinations and low costs are its main features.
iDrop Light was developed specifically for soilless use and is Irritec’s economical and versatile answer to the needs of farmers.
Flow rates: 1.1, 2.1, 3.80 and 7.80 lph
Minimum operating pressure: 0.7 bar Multifunctional outlet
Drop-Stop anti-drainage system - close at 0.30 bar
Crop Applications:
Orchard, Vineyard, Landscape applications, Greenhouse, Nursery, Blueberries and Cannabis.
07
PRODUCT
iDrop® PC Drop stop
iDrop® PC Drop Stop consists of on-line turbulent flow drippers that are assembled together with the K-Drop System, and it is the most advanced irritec® proposal for soilless systems. It is particularly suitable for steeply sloping terrain and for crops with frequent fertigation cycles. It is the ideal solution for installations with long lines and on steep slopes.
Flow rates: 2.2, 3.2, 4.0, 7.8lph. Range of operation: from 0.8 to 4.0 bar Drop-Stop anti-drainage system
- close at 0.15 bar
Multifunctional outlet
Crop Applications:
Orchard, Vineyard, Landscape applications, Greenhouse, Nursery, Blueberries and Cannabis.
Experience the future of GHtech
Explore our comprehensive range of products and services today to enhance your greenhouse operations. Contact us now to schedule a consultation and discover how GHtech can transform your cultivation practices.
